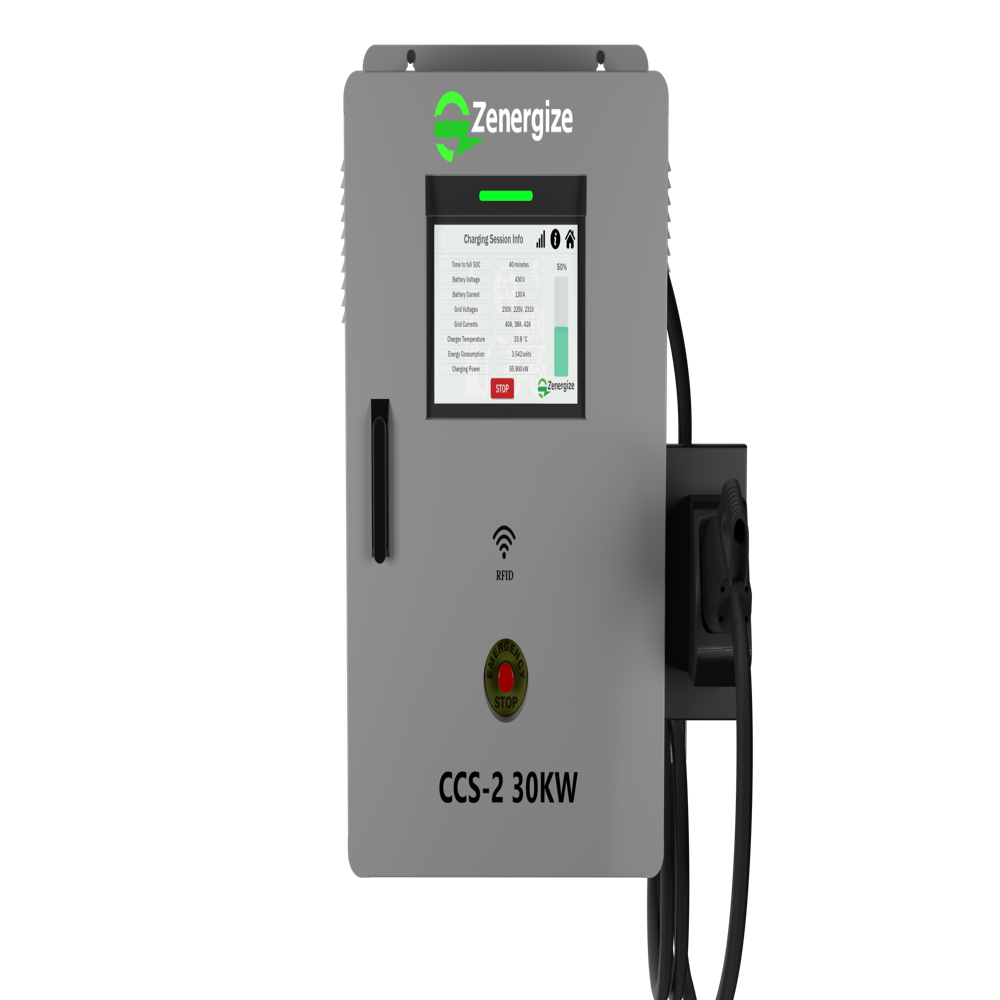

30kW DC Fast Charger

About 30kW DC Fast Charger

DC Fast Charger OEM to design, develop and manufacture the Power Modules, PLC Controller, Insulation Monitoring Device, OCPP 2.0.1 controller, DC Charge Controller and HMI design indigenously. The complete software and hardware stack is developed in-house.

Specification:

Brand: Zenergize

Charger Type: 30kW Single Gun | CCS-2

Dynamic Power Sharing: Yes

Input Voltage Type: 415V Three Phase, 5 Wire (R, Y, B, N, PE)

T.H.D (i): <2% at rated load

Power Factor: >0.99 (at rated load) and >0.98 (with load >50% rated load)

Maximum Input Current: 50A rms (per phase)

Output Voltage Range: 100-500 Vdc

Maximum Output Current (per gun): 80A

Power Conversion Efficiency: >95.5% (at rated load and 800 Vdc output)

Number of Guns: 1

Display Screen (HMI): 10" TFT Touch Screen

User Authentication: Using mobile application or HMI: QR Code / RFID Card / Password Login

Input AC Energy Meter: Yes

Battery Backup: 30 minutes

Communication Between EV and EVSE:
Low Level Communication as per IEC 61851-1, High Level Communication as per DIN SPEC 70121 and ISO 15118

Communication Between EVSE and CMS:
OCPP 1.6J and OCPP 2.0.1 software protocols via WiFi/GSM (2G/3G/4G)/Ethernet

Ingress Protection: IP55

Cooling: Forced Air Cooling

Charging Cable Length: 5 m (optional up to 7m available)

Operating Temperature: -25C to 75C (de-rating > 55C)

Weight: 190 Kg (With Power module)

Dimensions: 800 x 760 x 365 mm

Material: Phosphated mild steel with powder coating or Stainless Steel

Features:

Dynamic Power Sharing

10" TFT Touch Screen

QR Code / RFID Card / Password Login

Battery Backup 30 minutes

OCPP 1.6J and OCPP 2.0.1 Compliant

WiFi / GSM (2G/3G/4G) / Ethernet Connectivity

Remote Health & Performance Monitoring YES Smart HMPU

SiC MOSFET Technology

In-house designed and manufactured Power Module

In-house Firmware
